Product Description

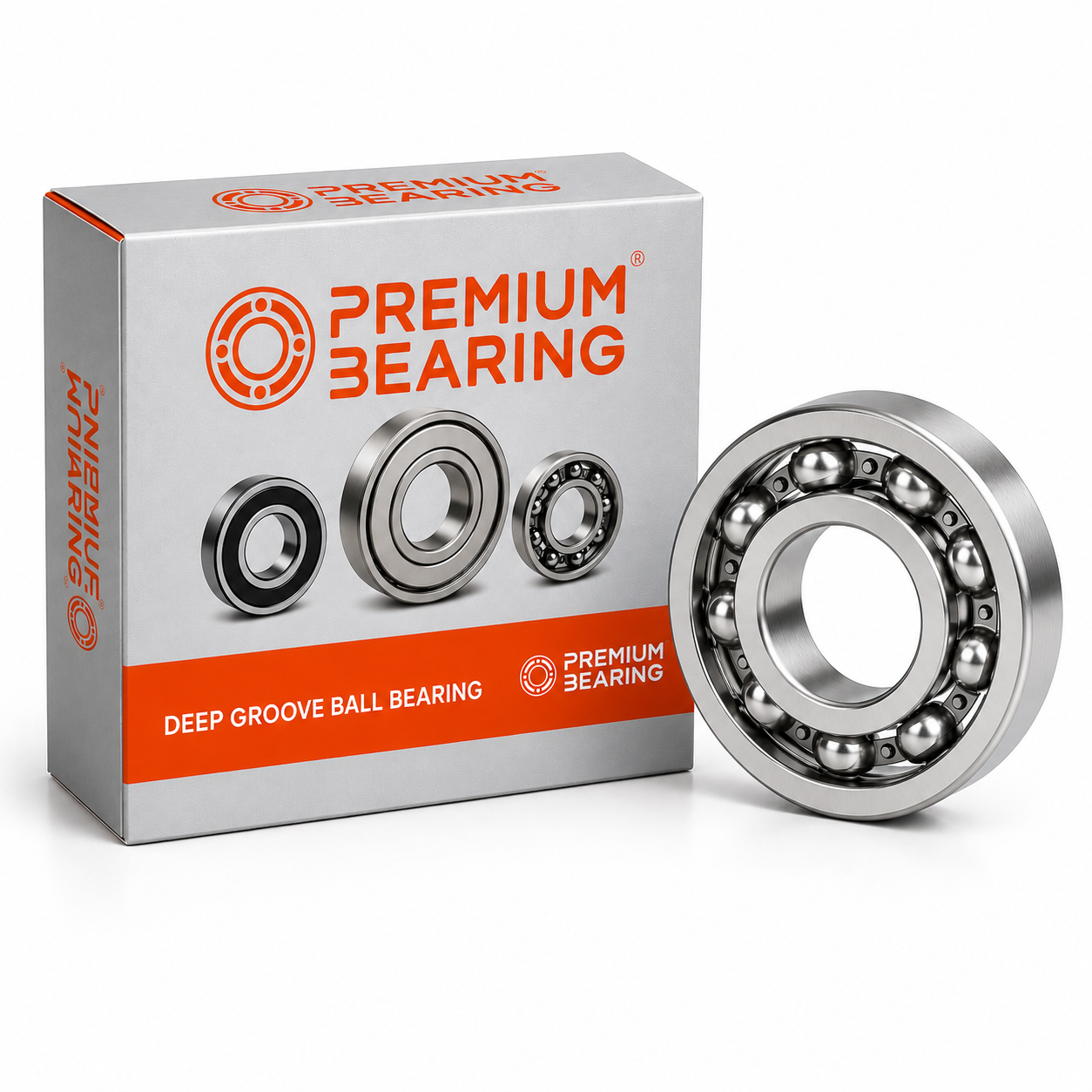

6000 Deep Groove Ball Bearing
The 6000 is a single-row deep groove ball bearing with an open design for maximum speed and easy relubrication and normal internal clearance. Pre-lubricated and maintenance-free, offering maximum speed capability where external sealing or relubrication is provided. Manufactured in an ISO 9001 certified facility.
Specifications
| Specification | Value |
|---|---|
| Bore (Inside Diameter) | 10 mm |
| Outside Diameter | 26 mm |
| Width | 8 mm |
| Seal Type | Open (no seals or shields) |
| Internal Clearance | Normal (CN) |
| Material | Chrome Steel (GCr15) |
| Precision Grade | ABEC 1 |
| Temperature Range | -30°C to 120°C |
| Dynamic Load Capacity | 4.55 kN |
| Static Load Capacity | 1.97kN |
| Max Speed (Oil / Grease) | 36000 r/min / 30000 r/min |
Common Applications
High-speed spindles, gearboxes with oil-bath lubrication, and machinery where housings provide external sealing.
Product Videos
Custom Field
Bore Diameter (d) 10 mm
Outer Diameter (D) 26 mm
Width (B) 8 mm
Seal Type Open (no seals or shields)
Internal Clearance Normal (CN)
Dynamic Load Capacity 4.55 kN
Static Load Capacity 1.97kN
