Product Description

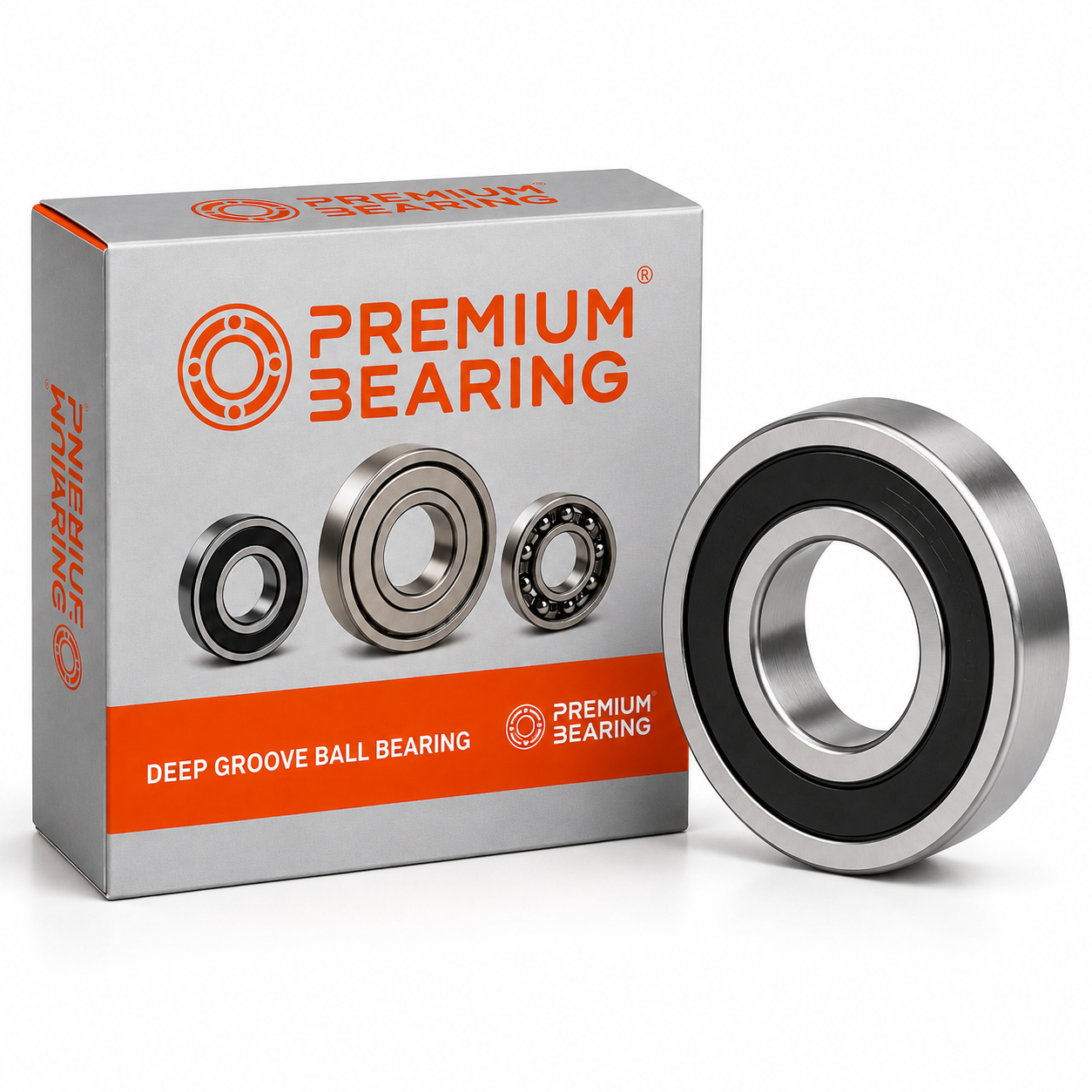

6001-2RS Deep Groove Ball Bearing
The 6001-2RS is a single-row deep groove ball bearing with rubber contact seals on both sides and normal internal clearance. Pre-lubricated and maintenance-free, it provides reliable protection against dust and moisture in demanding industrial environments. Manufactured in an ISO 9001 certified facility.
Specifications
| Specification | Value |
|---|---|
| Bore (Inside Diameter) | 12 mm |
| Outside Diameter | 28 mm |
| Width | 8 mm |
| Seal Type | Rubber seals both sides (2RS) |
| Internal Clearance | Normal (CN) |
| Material | Chrome Steel (GCr15) |
| Precision Grade | ABEC 1 |
| Temperature Range | -30°C to 120°C |
| Dynamic Load Capacity | 5.10 kN |
| Static Load Capacity | 2.37kN |
| Max Speed (Oil / Grease) | 32000 r/min / 28000 r/min |
Common Applications
Electric motors, industrial gearboxes, pumps, compressors, conveyors, and heavy machinery where sealed, maintenance-free operation is required.
Product Videos
Custom Field
Bore Diameter (d) 12 mm
Outer Diameter (D) 28 mm
Width (B) 8 mm
Seal Type Rubber seals both sides (2RS)
Internal Clearance Normal (CN)
Dynamic Load Capacity 5.10 kN
Static Load Capacity 2.37kN
