Product Description

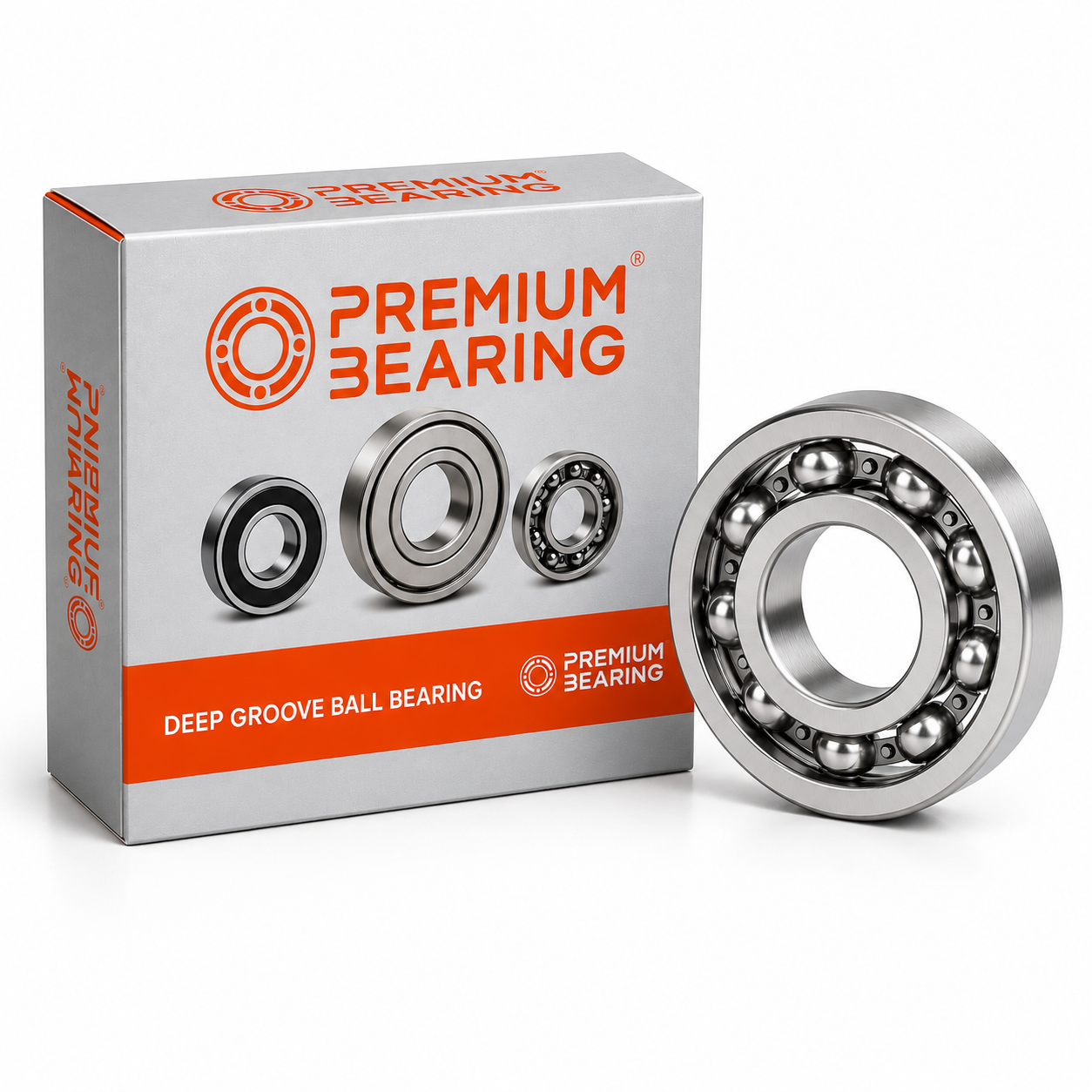

6002 Deep Groove Ball Bearing
The 6002 is a single-row deep groove ball bearing with an open design for maximum speed and easy relubrication and normal internal clearance. Pre-lubricated and maintenance-free, offering maximum speed capability where external sealing or relubrication is provided. Manufactured in an ISO 9001 certified facility.
Specifications
| Specification | Value |
|---|---|
| Bore (Inside Diameter) | 15 mm |
| Outside Diameter | 32 mm |
| Width | 9 mm |
| Seal Type | Open (no seals or shields) |
| Internal Clearance | Normal (CN) |
| Material | Chrome Steel (GCr15) |
| Precision Grade | ABEC 1 |
| Temperature Range | -30°C to 120°C |
| Dynamic Load Capacity | 5.10 kN |
| Static Load Capacity | 2.37kN |
| Max Speed (Oil / Grease) | 32000 r/min / 28000 r/min |
Common Applications
High-speed spindles, gearboxes with oil-bath lubrication, and machinery where housings provide external sealing.
Product Videos
Custom Field
Bore Diameter (d) 15 mm
Outer Diameter (D) 32 mm
Width (B) 9 mm
Seal Type Open (no seals or shields)
Internal Clearance Normal (CN)
Dynamic Load Capacity 5.10 kN
Static Load Capacity 2.37kN
