Product Description

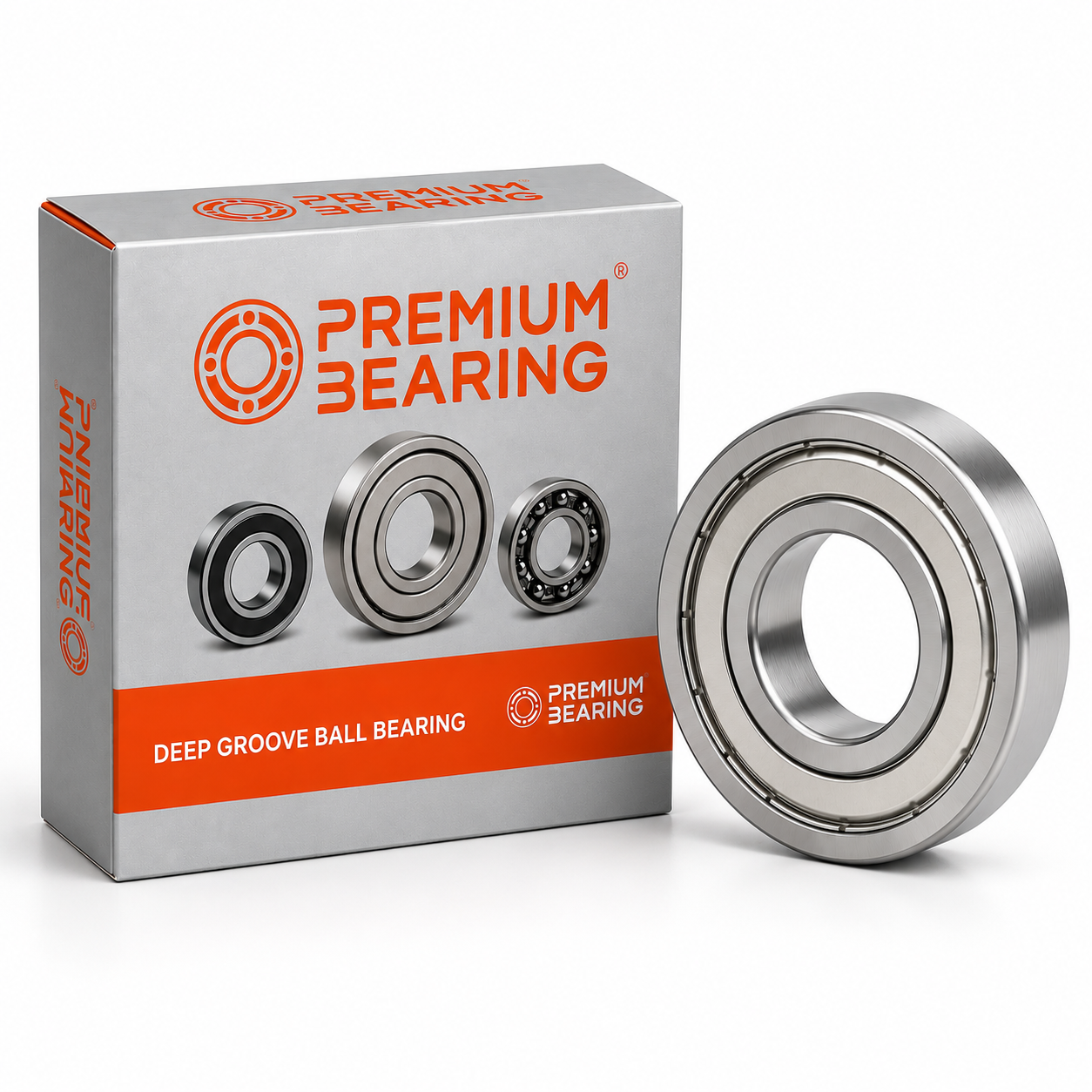

6006-ZZ Deep Groove Ball Bearing
The 6006-ZZ is a single-row deep groove ball bearing with metal shields on both sides and normal internal clearance. Pre-lubricated and maintenance-free, making it ideal for electric motors and applications where contamination protection and higher speeds are required. Manufactured in an ISO 9001 certified facility.
Specifications
| Specification | Value |
|---|---|
| Bore (Inside Diameter) | 30 mm |
| Outside Diameter | 55 mm |
| Width | 13 mm |
| Seal Type | Metal shields both sides (ZZ) |
| Internal Clearance | Normal (CN) |
| Material | Chrome Steel (GCr15) |
| Precision Grade | ABEC 1 |
| Temperature Range | -30°C to 120°C |
| Dynamic Load Capacity | 13.20 kN |
| Static Load Capacity | 8.30 kN |
| Max Speed (Oil / Grease) | 15000 r/min / 13000 r/min |
Common Applications
Electric motors, pumps, fans and blowers, power tools, conveyors, and general industrial machinery.
Product Videos
Custom Field
Bore Diameter (d) 30 mm
Outer Diameter (D) 55 mm
Width (B) 13 mm
Seal Type Metal shields both sides (ZZ)
Internal Clearance Normal (CN)
Dynamic Load Capacity 13.20 kN
Static Load Capacity 8.30 kN
