Product Description

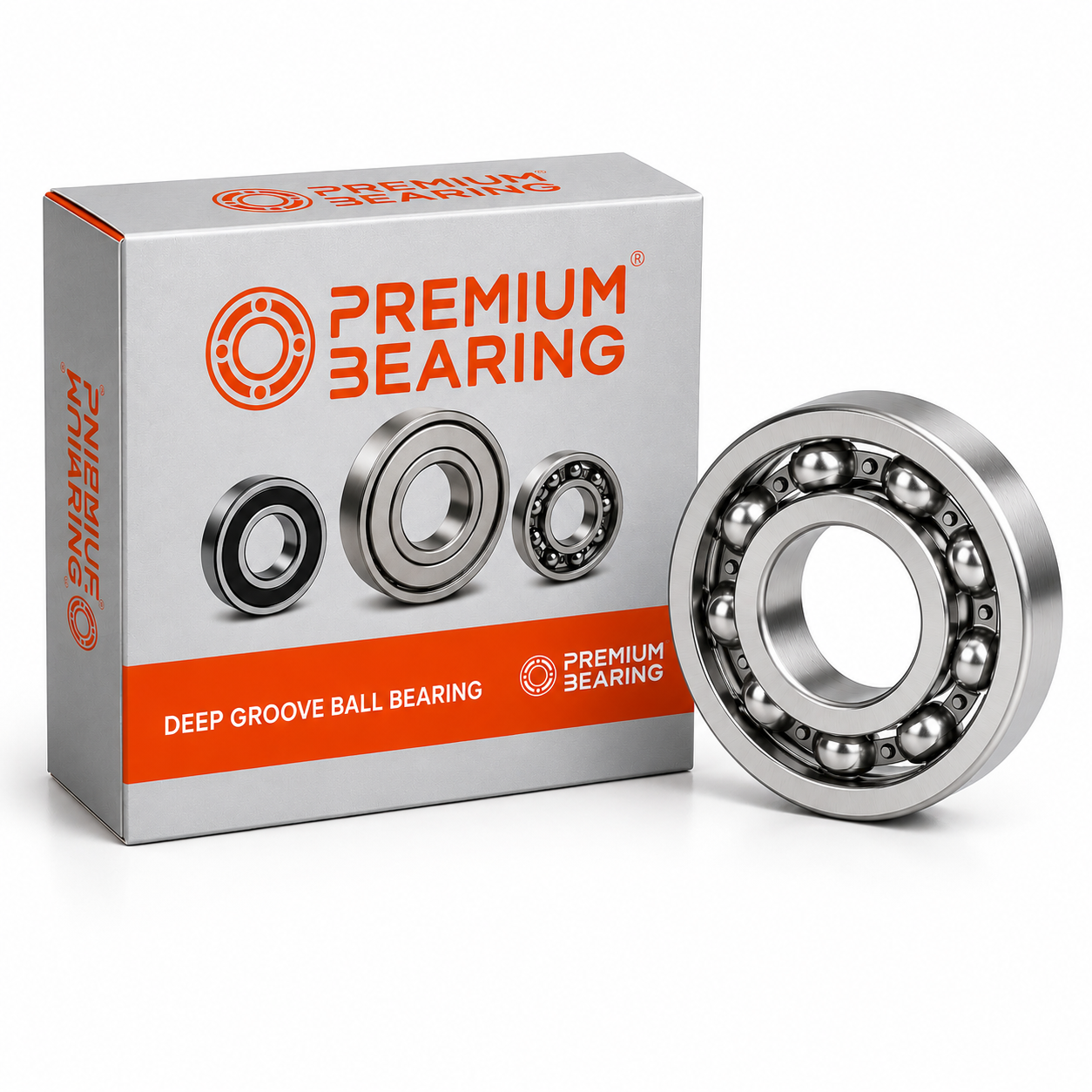

6010-C3 Deep Groove Ball Bearing
The 6010-C3 is a single-row deep groove ball bearing with an open design for maximum speed and easy relubrication and C3 internal clearance. Pre-lubricated and maintenance-free, offering maximum speed capability where external sealing or relubrication is provided. C3 internal clearance suits applications where operating heat causes expansion, such as electric motors. Manufactured in an ISO 9001 certified facility.
Specifications
| Specification | Value |
|---|---|
| Bore (Inside Diameter) | 50 mm |
| Outside Diameter | 80 mm |
| Width | 16 mm |
| Seal Type | Open (no seals or shields) |
| Internal Clearance | C3 |
| Material | Chrome Steel (GCr15) |
| Precision Grade | ABEC 1 |
| Temperature Range | -30°C to 120°C |
| Dynamic Load Capacity | 21.80 kN |
| Static Load Capacity | 16.60 kN |
| Max Speed (Oil / Grease) | 10000 r/min / 8500 r/min |
Common Applications
High-speed spindles, gearboxes with oil-bath lubrication, and machinery where housings provide external sealing.
Product Videos
Custom Field
Bore Diameter (d) 50 mm
Outer Diameter (D) 80 mm
Width (B) 16 mm
Seal Type Open (no seals or shields)
Internal Clearance C3
Dynamic Load Capacity 21.80 kN
Static Load Capacity 16.60 kN
