Product Description

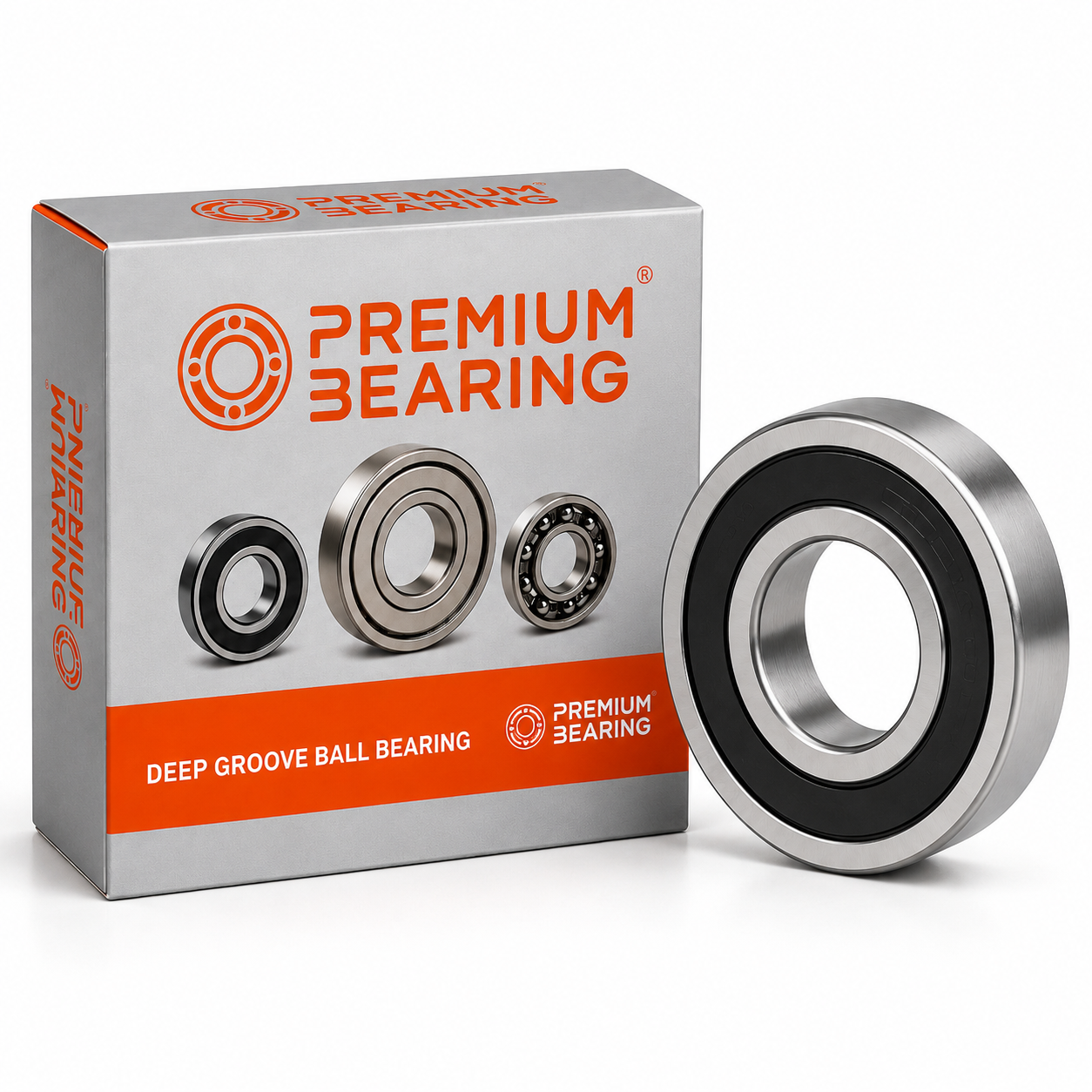

6310-2RS Deep Groove Ball Bearing
The 6310-2RS is a single-row deep groove ball bearing with rubber contact seals on both sides and normal internal clearance. Pre-lubricated and maintenance-free, it provides reliable protection against dust and moisture in demanding industrial environments. Manufactured in an ISO 9001 certified facility.
Specifications
| Specification | Value |
|---|---|
| Bore (Inside Diameter) | 50 mm |
| Outside Diameter | 110 mm |
| Width | 27 mm |
| Seal Type | Rubber seals both sides (2RS) |
| Internal Clearance | Normal (CN) |
| Material | Chrome Steel (GCr15) |
| Precision Grade | ABEC 1 |
| Temperature Range | -30°C to 120°C |
| Dynamic Load Capacity | 62 kN |
| Static Load Capacity | 38.5 kN |
| Max Speed (Oil / Grease) | 7500 r/min / 6000 r/min |
Common Applications
Electric motors, industrial gearboxes, pumps, compressors, conveyors, and heavy machinery where sealed, maintenance-free operation is required.
Product Videos
Custom Field
Bore Diameter (d) 50 mm
Outer Diameter (D) 110 mm
Width (B) 27 mm
Seal Type Rubber seals both sides (2RS)
Internal Clearance Normal (CN)
Dynamic Load Capacity 62 kN
Static Load Capacity 38.5 kN
